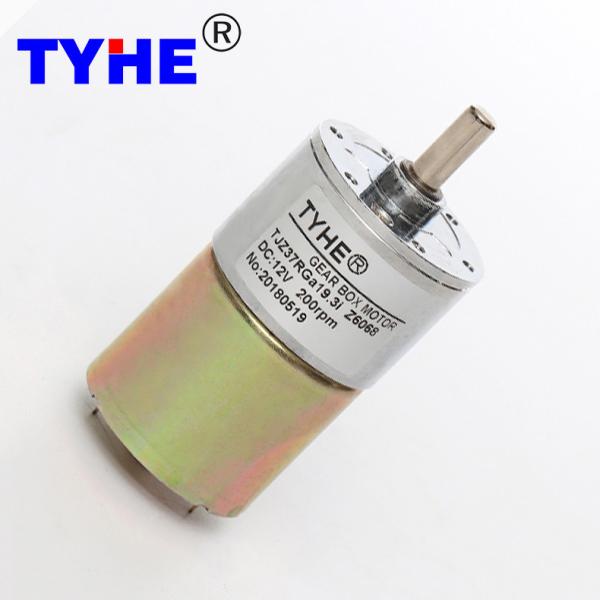

Reversible Dc Spur Gear Motor Miniature Gearbox 15rpm High Torque

Products Description

Reversible 37mm miniature gear box 12v 24v 10 rpm 8rpm 14rpm 15rpm high torque 20kg 15kgcm dc spur gear motor for bbq

Model	End cover dimensions	Motor type	Regular Shaft	Weight
TJZ37RGa	φ37mm	RS530	6mm-D cut	180g

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	3500	60	2800	0.21	5.30	1.55	61.91	15.90	1.43
RS530	12	5000	160	4000	0.49	8.90	3.73	62.86	26.70	3.05
RS530	24	3500	35	2800	0.12	5.90	1.73	62.68	17.70	0.75
RS530	24	5000	80	4000	0.25	9.12	3.82	62.83	27.36	1.60
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-3500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	608.7	1.26	19.75	59.24	869.6	3.02	33.16	99.48
22.5	81	5.9	474.6	1.26	25.33	75.99	678.0	3.02	42.53	127.60
22.5	81	6.9	405.8	1.26	29.62	88.87	579.7	3.02	49.74	149.23
22.5	73	8.4	333.3	1.13	32.50	97.50	476.2	2.72	54.57	163.72
22.5	73	10.6	264.2	1.13	41.01	123.03	377.4	2.72	68.87	206.60
22.5	73	13.5	207.4	1.13	52.23	156.69	296.3	2.72	87.71	263.13
22.5	73	16.0	175.0	1.13	61.90	185.71	250.0	2.72	103.95	311.86
24.5	65.6	19.3	145.1	1.02	67.10	201.31	207.3	2.45	112.68	338.04
24.5	65.6	24.4	114.8	1.02	84.83	254.50	163.9	2.45	142.46	427.37
24.5	65.6	31.6	88.6	1.02	109.87	329.60	126.6	2.45	184.49	553.48
24.5	65.6	37.0	75.7	1.02	128.64	385.92	108.1	2.45	216.02	648.06
26.5	59	45.0	62.2	0.92	140.72	422.15	88.9	2.20	236.30	708.89
26.5	59	57.0	49.1	0.92	178.24	534.72	70.2	2.20	299.31	897.92
26.5	59	73.6	38.0	0.92	230.15	690.44	54.3	2.20	386.47	1159.42
26.5	59	86.0	32.6	0.92	268.92	806.77	46.5	2.20	451.59	1354.76
26.5	59	95.0	29.5	0.92	297.07	891.20	42.1	2.20	498.85	1496.54
29.5	53	105.0	26.7	0.82	294.95	884.84	38.1	1.98	495.29	1485.86
29.5	53	133.0	21.1	0.82	373.60	1120.79	30.1	1.98	627.36	1882.08
29.5	53	172.0	16.3	0.82	483.15	1449.44	23.3	1.98	811.32	2433.97
29.5	53	201.0	13.9	0.82	564.61	1693.83	19.9	1.98	948.12	2500.00
29.5	53	221.0	12.7	0.82	620.79	1862.37	18.1	1.98	1042.46	2500.00
29.5	53	244.0	11.5	0.82	685.40	2056.19	16.4	1.98	1150.95	2500.00
32.5	47.8	245.0	11.4	0.74	620.68	1862.05	16.3	1.78	1042.28	2500.00
32.5	47.8	310.0	9.0	0.74	785.35	2356.06	12.9	1.78	1318.80	2500.00
32.5	47.8	401.0	7.0	0.74	1015.89	2500.00	10.0	1.78	1705.93	2500.00
32.5	47.8	469.0	6.0	0.74	1188.16	2500.00	8.5	1.78	1995.22	2500.00
32.5	47.8	516.0	5.4	0.74	1307.23	2500.00	7.8	1.78	2195.17	2500.00
32.5	47.8	569.0	4.9	0.74	1441.50	2500.00	7.0	1.78	2420.64	2500.00
32.5	47.8	627.0	4.5	0.74	1588.44	2500.00	6.4	1.78	2500.00	2500.00
32.5	43	1093.0	2.6	0.67	2490.95	2500.00	3.7	1.60	2500.00	2500.00
32.5	43	1205.0	2.3	0.67	2500.00	2500.00	3.3	1.60	2500.00	2500.00
32.5	43	1328.0	2.1	0.67	2500.00	2500.00	3.0	1.60	2500.00	2500.00
32.5	43	1463.0	1.9	0.67	2500.00	2500.00	2.7	1.60	2500.00	2500.00
32.5	43	1613.0	1.7	0.67	2500.00	2500.00	2.5	1.60	2500.00	2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			24V-3500RPM Input				24V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	4.6	608.7	1.40	21.98	65.95	869.6	3.09	33.98	101.94
22.5	81	5.9	474.6	1.40	28.20	84.59	678.0	3.09	43.58	130.75
22.5	81	6.9	405.8	1.40	32.98	98.93	579.7	3.09	50.97	152.92
22.5	73	8.4	333.3	1.3	36.18	108.54	476.19	2.79	55.92	167.77
22.5	73	10.6	264.2	1.3	45.65	136.96	377.36	2.79	70.57	211.71
22.5	73	13.5	207.4	1.3	58.14	174.43	296.30	2.79	89.88	269.63
22.5	73	16.0	175.0	1.3	68.91	206.74	250.00	2.79	106.52	319.56
24.5	65.6	19.3	145.1	1.13	74.70	224.10	207.3	2.51	115.47	346.40
24.5	65.6	24.4	114.8	1.13	94.44	283.31	163.9	2.51	145.98	437.94
24.5	65.6	31.6	88.6	1.13	122.30	366.91	126.6	2.51	189.05	567.16
24.5	65.6	37.0	75.7	1.13	143.20	429.61	108.1	2.51	221.36	664.08
26.5	59	45.0	62.2	1.0	156.65	469.94	88.89	2.25	242.14	726.41
26.5	59	57.0	49.1	1.0	198.42	595.25	70.18	2.25	306.71	920.12
26.5	59	73.6	38.0	1.0	256.20	768.60	54.35	2.25	396.03	1188.08
26.5	59	86.0	32.6	1.0	299.37	898.10	46.51	2.25	462.75	1388.25
26.5	59	95.0	29.5	1.0	330.70	992.09	42.11	2.25	511.18	1533.53
29.5	53	105.0	26.7	0.92	328.34	985.01	38.1	2.02	507.53	1522.58
29.5	53	133.0	21.1	0.92	415.89	1247.67	30.1	2.02	642.87	1928.61
29.5	53	172.0	16.3	0.92	537.84	1613.53	23.3	2.02	831.38	2494.14
29.5	53	201.0	13.9	0.92	628.53	1885.58	19.9	2.02	971.55	2500.00
29.5	53	221.0	12.7	0.92	691.07	2073.20	18.1	2.02	1068.23	2500.00
29.5	53	244.0	11.5	0.92	762.99	2288.96	16.4	2.02	1179.40	2500.00
32.5	47.8	245.0	11.4	0.8	690.95	2072.85	16.33	1.83	1068.04	2500.00
32.5	47.8	310.0	9.0	0.8	874.26	2500.00	12.90	1.83	1351.40	2500.00
32.5	47.8	401.0	7.0	0.8	1130.90	2500.00	9.98	1.83	1748.10	2500.00
32.5	47.8	469.0	6.0	0.8	1322.67	2500.00	8.53	1.83	2044.54	2500.00
32.5	47.8	516.0	5.4	0.8	1455.22	2500.00	7.75	1.83	2249.43	2500.00
32.5	47.8	569.0	4.9	0.8	1604.69	2500.00	7.03	1.83	2480.48	2500.00
32.5	47.8	627.0	4.5	0.8	1768.27	2500.00	6.38	1.83	2500.00	2500.00
32.5	43	1093.0	2.6	0.74	2500.00	2500.00	3.7	1.64	2500.00	2500.00
32.5	43	1205.0	2.3	0.74	2500.00	2500.00	3.3	1.64	2500.00	2500.00
32.5	43	1328.0	2.1	0.74	2500.00	2500.00	3.0	1.64	2500.00	2500.00
32.5	43	1463.0	1.9	0.74	2500.00	2500.00	2.7	1.64	2500.00	2500.00
32.5	43	1613.0	1.7	0.74	2500.00	2500.00	2.5	1.64	2500.00	2500.00

2D drawing


Please let us know your requirements and we will provide you with transmission solutions.
